Location: Mexico
Frontera Station
Ciudad Camargo, Tamaulipas
Los Ramones Station
Los Ramones, Mexico

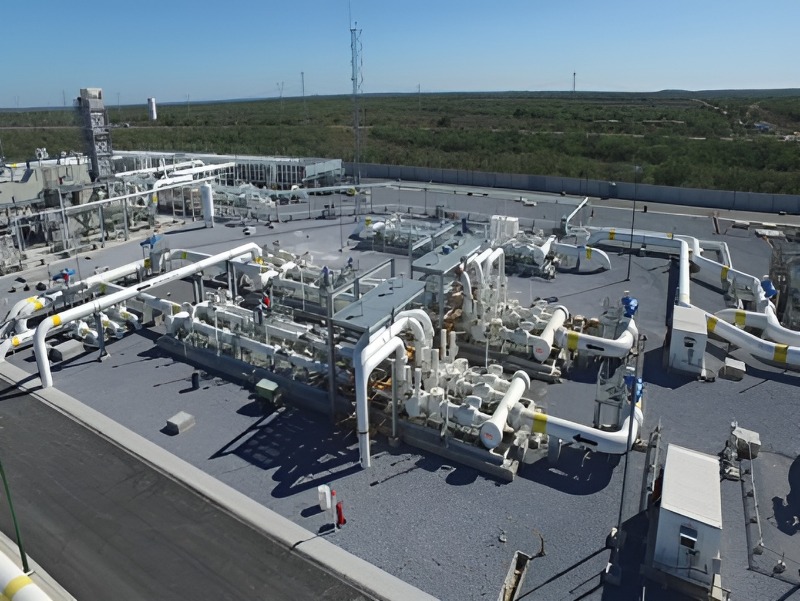

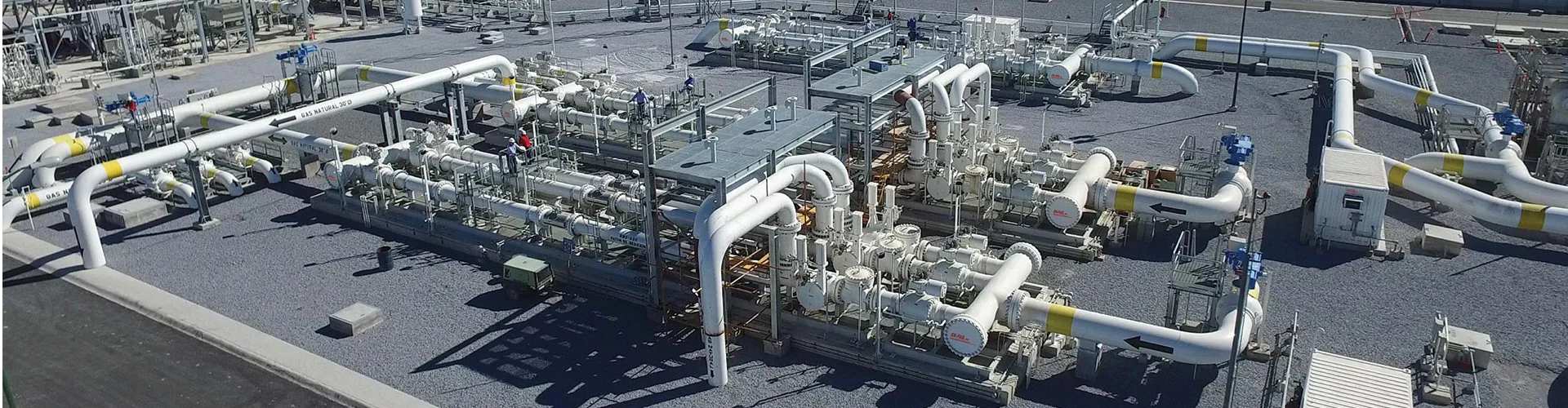

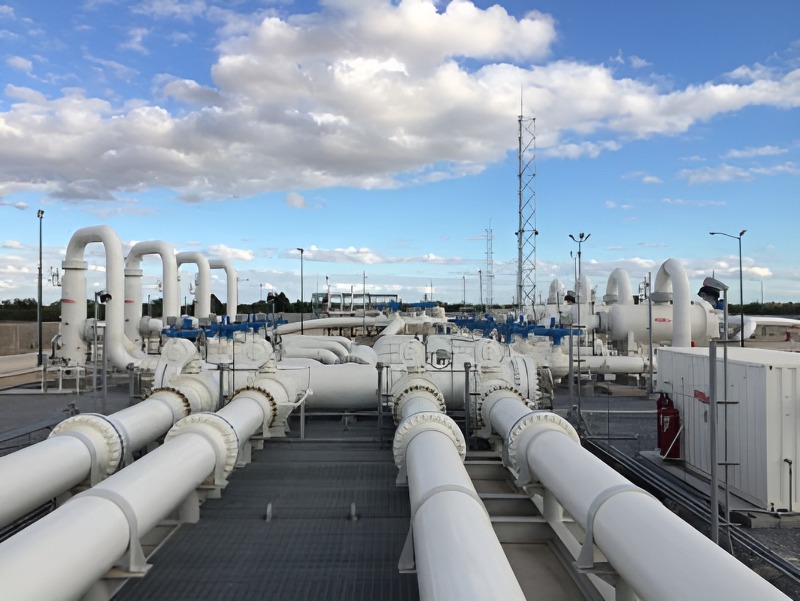

Frontera & Los Ramones Natural Gas Pipeline & Compressor Stations
Gas Compression, Metering & Measurement
Project Scope:
EN-FAB provide Design, Engineering and Fabrication
EN-FAB, Inc. Pipeline Los Ramones – Stage I
Pipeline 48 " in diameter, with a distance of 117 km to receive 1,000 MMSCFD. It has two stations called Frontera and Los Ramones with pig launchers and receivers, metering skids, separators and coalescer filters. Gas arrives at Ramones from the USA, and is distributed to Los Indios Station, Monterrey.
EN-FAB, Inc. Compression station Los Ramones – Stage II
The integrated project for the Los Ramones Gas Pipeline, consists in supplying natural gas from Texas (USA) to Guanajuato, a city located in the center of Mexico. The diameter of the pipeline, at 48 inches, makes it the country’s largest transport system.
Frontera Station Ciudad Camargo, Tamaulipas
Phase 1
- Two-48” x 56” ANSI 600# Launcher & Receiver
- Four- 40” ID x 12’-10” ANSI 600# Cyclone Scrubber

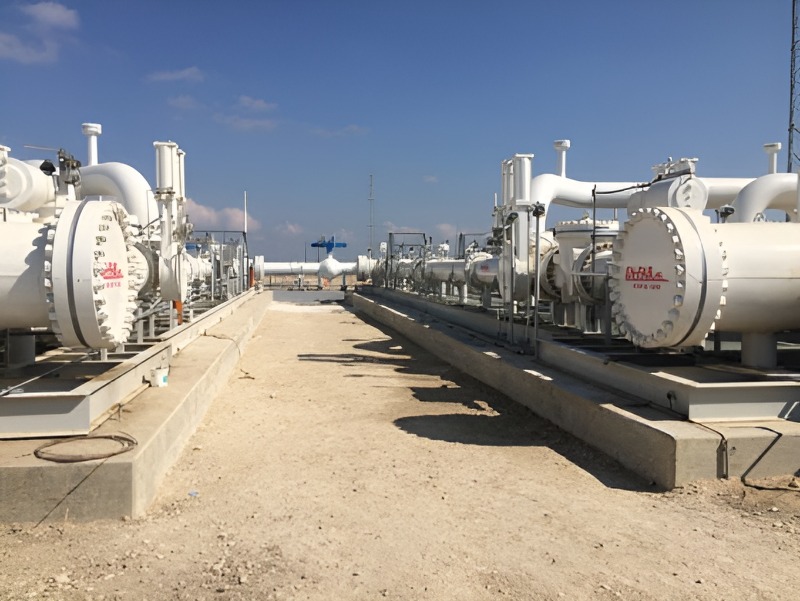

- Four 66” ID x 12’-0” ANSI 600# Coalescer Filters

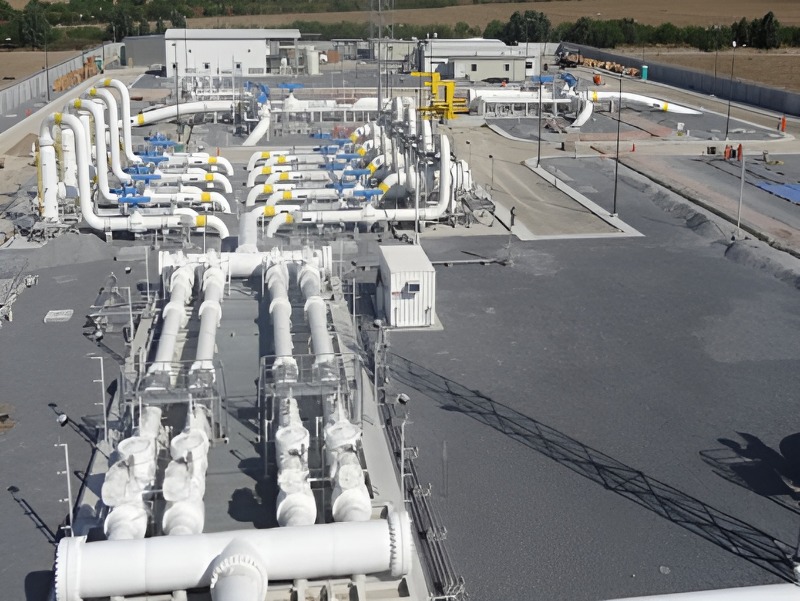

- One-2,250 MMSCFD Metering Station 48” Header by 4-30” Ultrasonic meter
- One-Quality Control Package
Phase 2
- Three-Fuel Gas Skid
- Three-Seal Gas Skids
- One-Micro Turbines Fuel Gas Skids
Los Ramones Station
Phase 1
- One-48” x 56” ANSI 600# Launcher & Receiver
- Five 54” ID x 10’-0” ANSI 600# Coalescer Filters
- One-900 MMSCFD Metering Station 36” Header by 3-24” Ultrasonic meter
- One-1100 MMSCFD Metering Station 42” Header by 3-24” Ultrasonic meter
- Two-Quality Control Package
Phase 2
- Four- 40” ID x 12’-10” ANSI 600#
- Cyclone Scrubber
- Three-Fuel Gas Skids
- Three-Seal Gas Skids
- One-Micro Turbines Fuel Gas Skids
- One-1500 MMSCFD Metering Station 42” Header by 3-24”
- Ultrasonic meter
- One-Quality Control Package
EN-FAB, Inc. also provided start-up and commissioning services for all its equipment.
